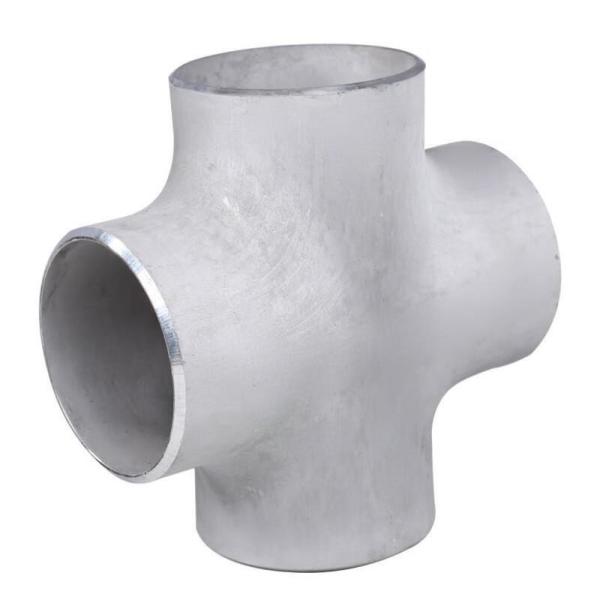

NXF ASTM DIN JIS 316Ti/0Cr18Ni12Mo2Ti DN15-1200 Class 150-2500 Stainless Steel 316Ti Forging Butt Welding Cross

316Ti is a type of austenitic stainless steel with added titanium and molybdenum. The addition of these elements to 316L increases the strength and ductility of the steel, and it is used in highly corrosive environments where a greater resistance to pitting,crevice corrosion and stress corrosion cracking are needed. It is also used for its ability to resist chloride-ion stress cracking. 316Ti has good resistance to chloride-ion stress cracking due to its high manganese content. The maximum allowable chloride content in 316ti is 0.03%, which makes it suitable for many marine applications.The grade also has excellent resistance to general corrosion, including pitting and crevice corrosion, due to its low carbon content.Grade 316Ti stainless steel contains a small amount of titanium content. Titanium content is typically only around 0.2% to 0.7%.The titanium atoms stabilise the structure of the grade 316 material at temperatures over 800 degree.This prevents carbide precipitation at the grain boundaries and protects the metal strips from corrosion.The main advantage of 316Ti stainless steel is that it can be held at higher temperatures for a longer period without sensitisation (precipitation) occurring.And 316Ti retains physical and mechanical properties similar to standard grade of 316L stainless steel.

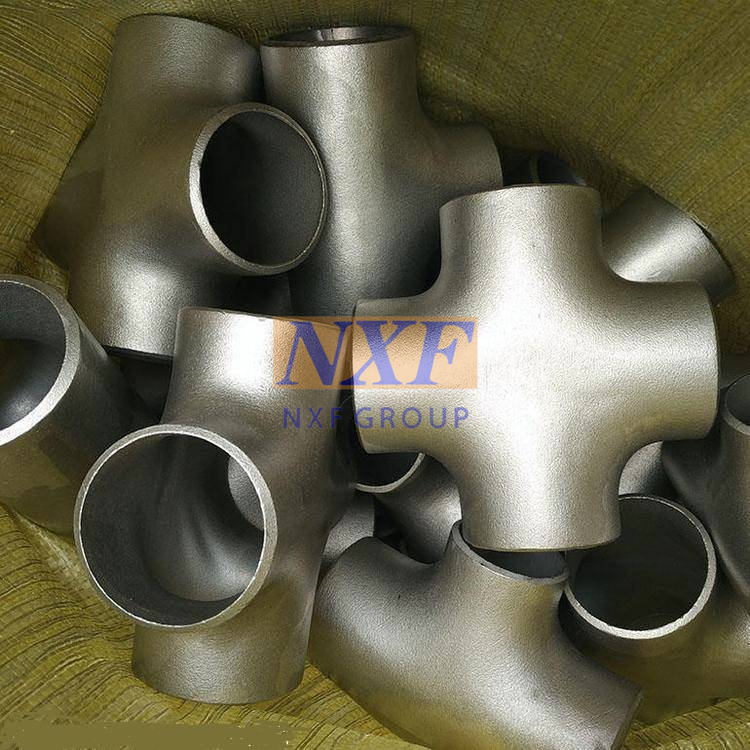

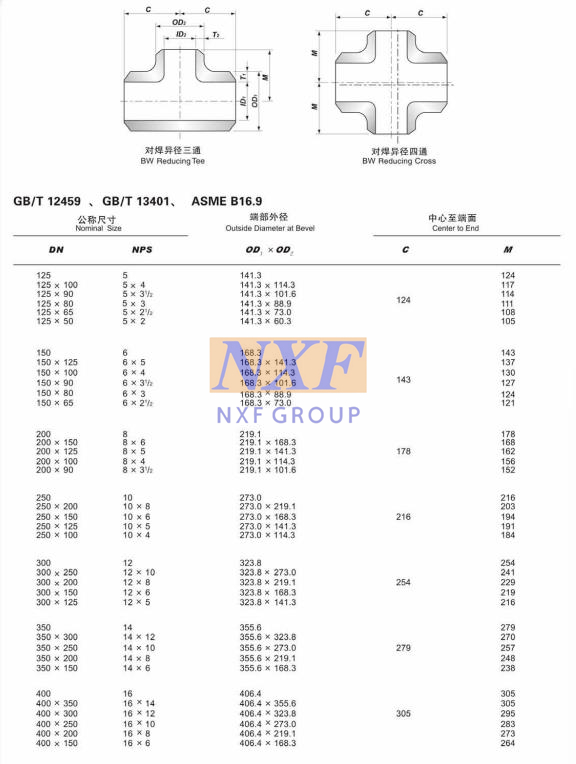

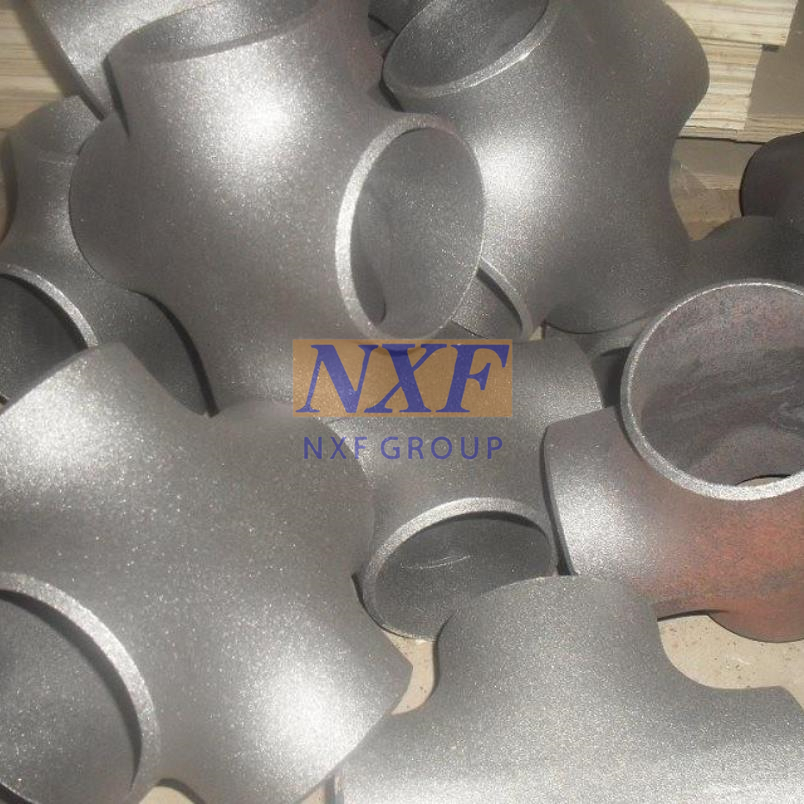

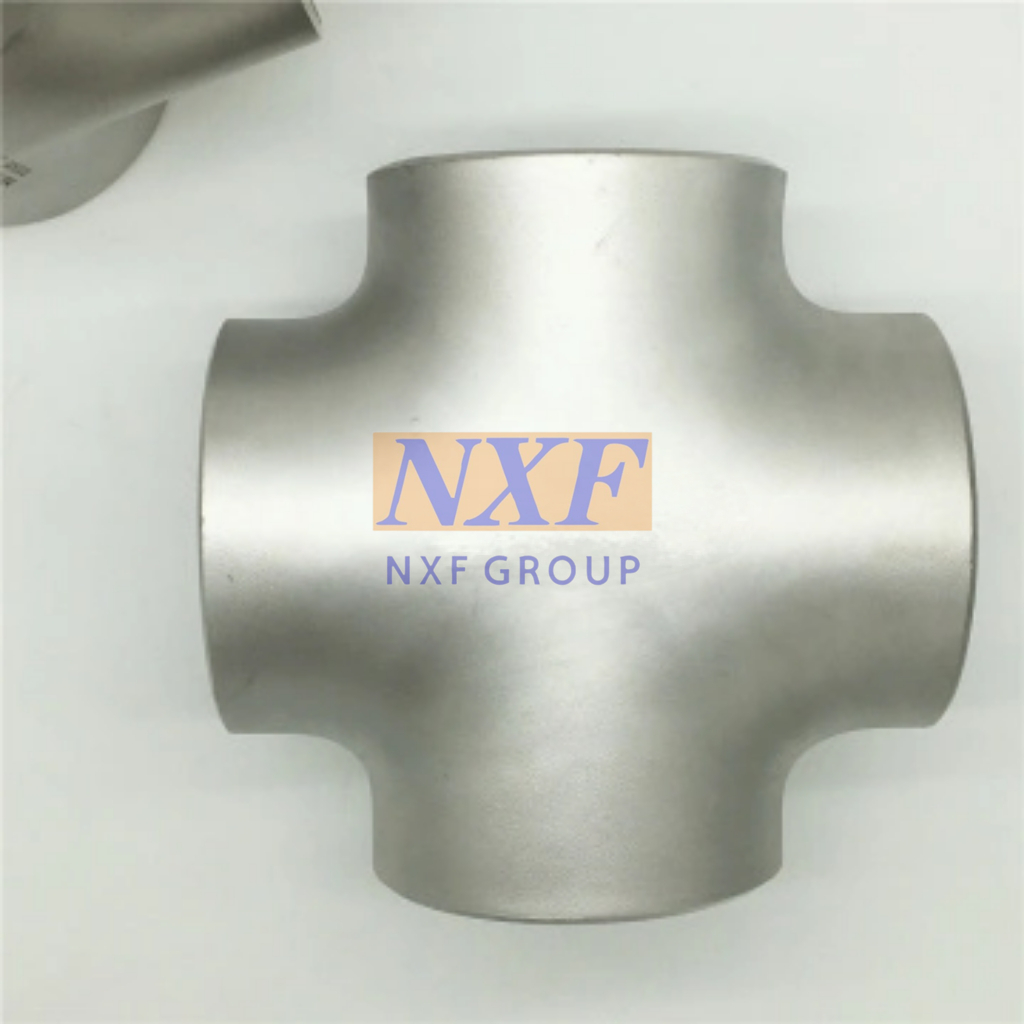

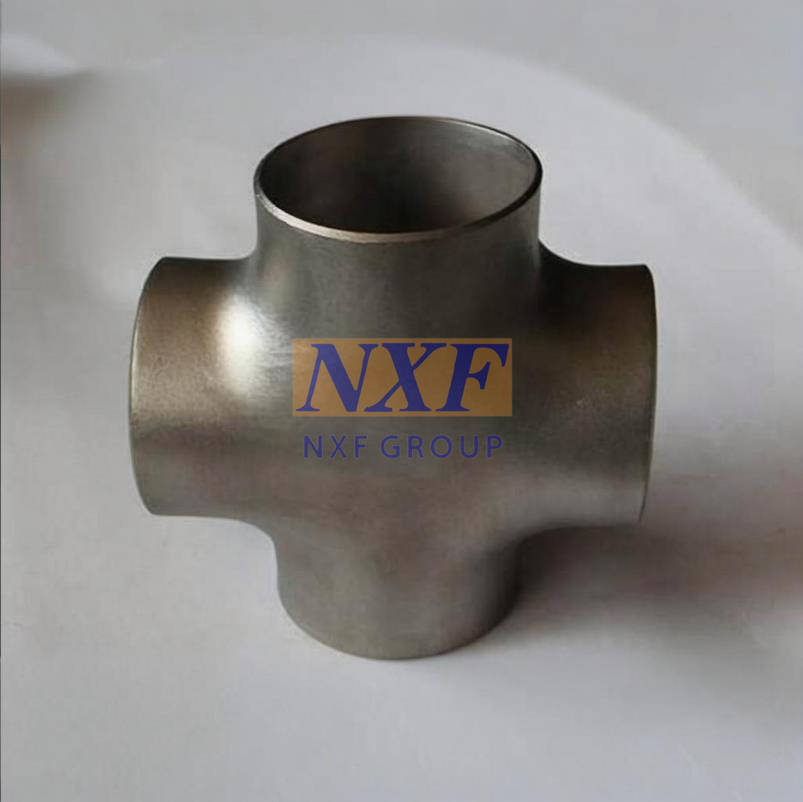

Butt-weld cross is a steel pipe fitting made by hot pressing or forging. The connection method is to directly butt-weld the cross to the steel pipe to ensure the stability and sealing of the connection. Butt-weld crosses are divided into equal diameter and reducing diameter. The pipe ends of equal diameter crosses have the same size, while the pipe ends of reducing crosses have the same size of main pipes, and the branch pipe ends are smaller than the main pipe. Butt-weld crosses are widely used in pipeline branches and are suitable for various industrial fields such as petroleum, natural gas, chemical industry, etc., for connecting four pipes with the same nominal diameter and perpendicular to each other.
